1 Channel Radio Mic System - 1 Handheld Mic
1 Channel Radio Mic System - 1 Handheld Mic
Couldn't load pickup availability
1-channel UHF PLL microphone system
- 1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology
- 93 preset channels in 10 channel groups
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LEDs for carrier and audio signal
- Detachable BNC antenna
- 1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency
- LCD display
- UHF 823 - 832 MHz License-free and approved in large parts of Europe
- UHF 863 - 865 MHz License-free and approved in Europe
- Operating range up to 60m with line-of-sight
- For application areas such as: Clubs/dancing school; Wedding/gala/events; mobile use; mobile djs / entertainer; restaurants, bars and hotels
Product Specification
Product Specification
Type: Wireless set
Range: Range up to 60m with line-of-sight
Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency stability: ±
Modulation: FM; PLL technology
Frequency selection: 93 Switchable frequencies
Weight: 3,00 kg

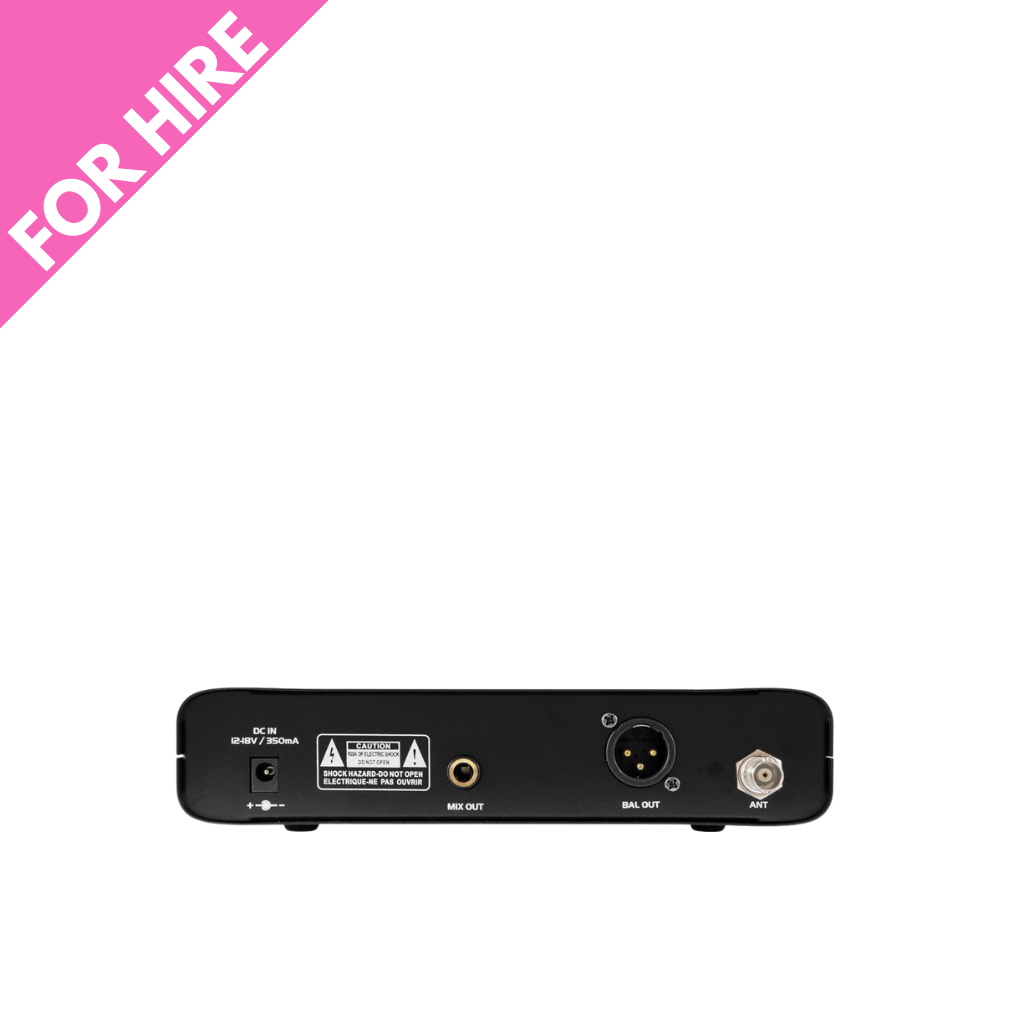

Receiver
Power supply: 100-240 V AC, 50/60 Hz
12 V DC 500 mA
Power consumption: 6 W
Power connection: Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels: 4
Frequency range: 50 - 18,000 Hz
S/N ratio: >80 dB
THD: <0,5 % at 1 kHz
Display type: LCD display
Display: Chanal , frequency , goup
Control elements: Power switch, level control, encoder
Status LED: Power, signal, level meter
Connections: Input: antenna via 2 x BNC (F)
Output: line via 1 x 6.3 mm plug (unbal.)
Output: Microphone via 4 x 3-pin XLR
Material: Metal
Housing design: Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions: Width: 41 cm
Depth: 23,5 cm
Height: 4,7 cm
