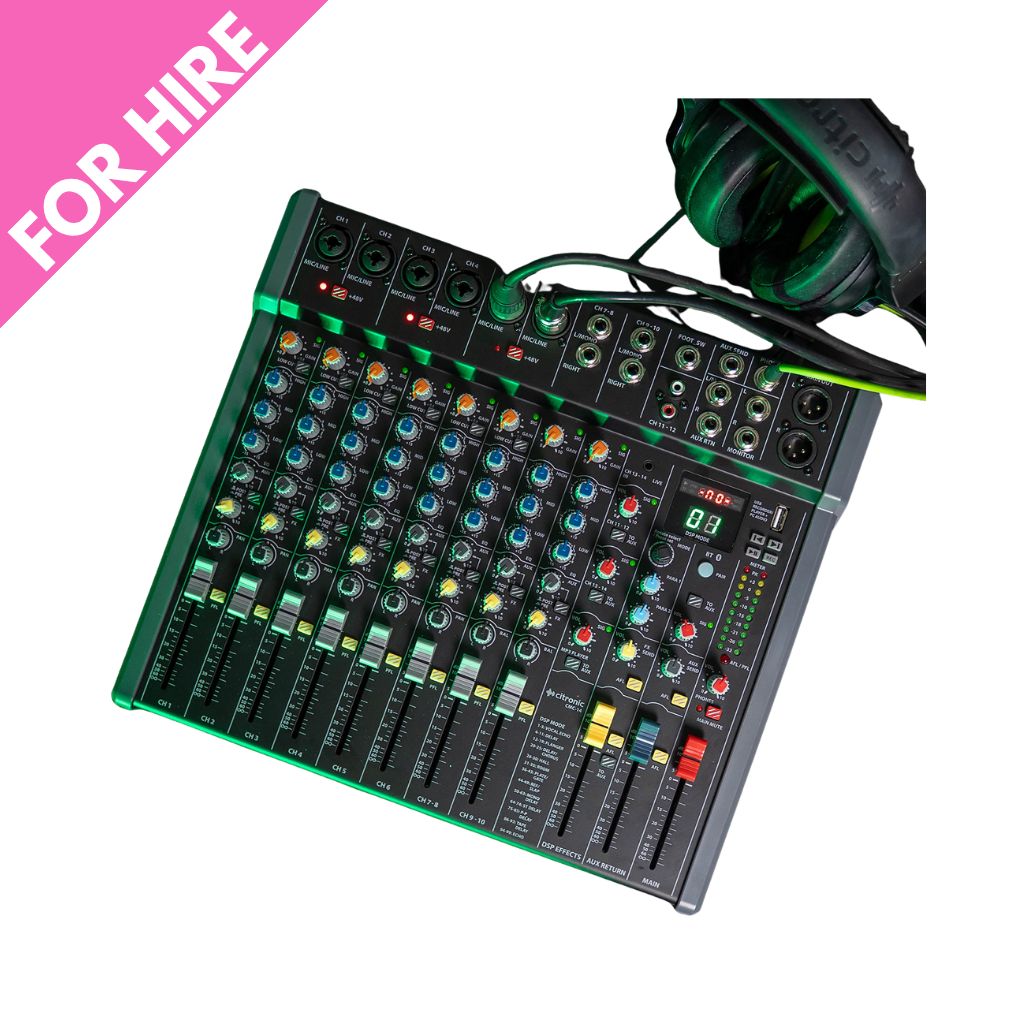

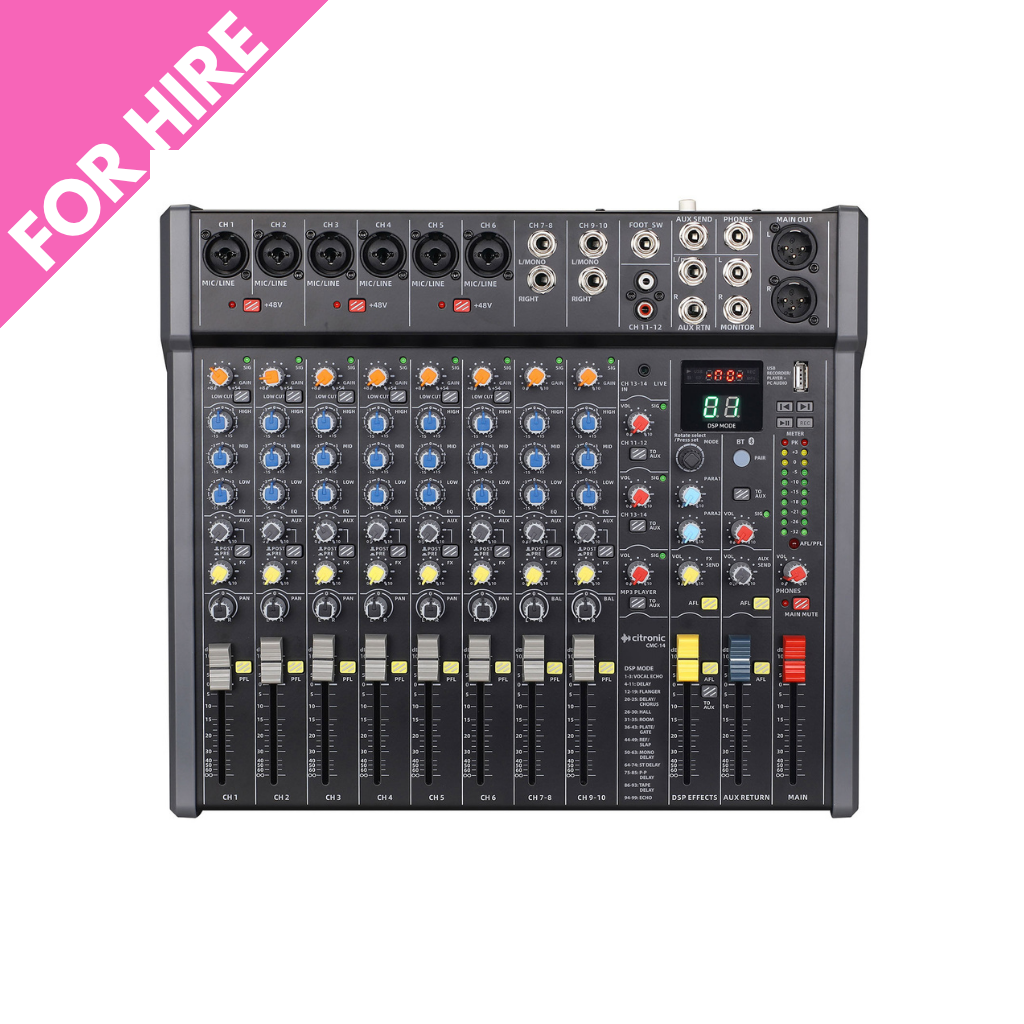

Take full control of your live sound with the Citronic CMC-14, a feature-packed 14-input mixing console designed for live sound engineers, venues, performers, and project studios. Delivering exceptional audio routing flexibility, pristine sound quality, and modern connectivity options, the CMC-14 combines analog precision with versatile digital features.
Equipped with 6 mono mic/line channels featuring combo XLR/Jack inputs, dual stereo line inputs, and flexible Aux connectivity, this console gives you the freedom to handle everything from live bands and acoustic setups to corporate presentations and DJ setups.
Key Features & Highlights
-
Integrated 99-Preset DSP Effects: Elevate your mix with a foot-switchable, studio-quality 24-bit DSP engine featuring 99 editable presets for reverb, delay, and modulation—each customizable with dual parameter controls.
-
Modern Wireless & Digital Connectivity: Stream audio wirelessly via the built-in Bluetooth 5.1 receiver with independent volume control, or plug directly into the top-panel USB-A port for playing MP3s, recording your main output to a flash drive, or interfacing with a PC/Mac.
-
Versatile Channel Control: Each mono channel features a combo XLR/Jack connection, gain matching, switchable +48V phantom power (in pairs), a low-cut rumble filter, smooth 3-band EQ, Aux/FX sends, Pan control, and smooth 60mm channel faders.
-
Flexible Monitoring & Routing: Includes a Pre/Post Aux send, stereo Aux return, PFL (Pre-Fader Listen) switches on every channel, along with dedicated 6.3mm headphone and monitor outputs.
-
Rugged & Compact Build: Designed to withstand the demands of live performance and road transport while keeping a compact desktop footprint.
Product Specification
Product Specification
- Weight3.30kg
- Dimensions345 x 310 x 80mm
- Inputs : Mic/Line6 x XLR/6.3mm jack
- Power supply100-240Vac, 50/60Hz (IEC)
- FuseT1.6AH
- Effects99 program DSP (2 parameter controls)
- Inputs : Line2 x stereo L+R 6.3mm, stereo RCA + stereo 3.5mm
- Audio sourceBluetooth receiver, USB mp3 player/recorder
- Bluetooth versionv5.1 (+BR+EDR+BLE)
- EQ: low±15dB @ 80Hz
- EQ: mid±15dB @ 2.5kHz
- EQ: high±15dB @ 12kHz
- Phantom power+48V switchable in pairs (XLR inputs only)
- Frequency response20Hz - 22kHz (±1dB)
- Input levelMic +10dBu max. / Line +22dBu max.
- Input impedanceBalanced XLR 2k Ohm, Balanced TRS jack 10k Ohm (unbal 20k Ohm)
- THD +N<0.05% @ 1kHz
- NoiseEIN -122dBu (22Hz - 22kHz)
- CMRR>75dB (Mic 1kHz)
- SensitivityXLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
- Crosstalk>80dB (1kHz fader shutoff)
- OutputsMain L+R XLR, L+R Monitor 6.3mm, Headphones 6.3mm
- Max. output levelXLR +22dBu, TRS +20dBu
- Sends : returns1 Aux send, L+R return
